The short version: I bought the plug-and-play harness. My CR-V Hybrid didn’t have the factory tow package it requires, so it was useless in the box. What follows is the custom install I had to do instead — including the one wire that will lock up your dashboard if you tap it.
Why this guide exists
The 56370 4-way harness is sold as plug-and-play, and it is — if your vehicle has the factory tow package. Its listing says so plainly: “Factory Tow Package Required.” Plenty of CR-V Hybrids don’t have it, and there’s no connector waiting behind the trim panel to plug into.
At that point you have two choices: send it back, or wire it yourself. This is what wiring it yourself looks like on this car, including a trap that cost me a good while to understand.
Parts used
- CURT 13397 Class 3 hitch, 2″ receiver — 3,500 lb GTW, 525 lb TW, fits 2017–2026 CR-V
- 56370 4-way trailer wiring harness (bought as plug-and-play, used as parts)
- A powered 4-way trailer converter module
- 18 AWG primary wire for signal runs, 12 AWG for the constant 12V power feed
- Inline fuse holder, ring terminals, adhesive-lined heat shrink, and a multimeter
⚠️ Before anything else: the hitch’s rating is not your car’s rating.
The CURT 13397 is rated 3,500 lb. That is what the hitch can take. What you may actually tow is the lower of the hitch rating and Honda’s rating for your specific vehicle — and CR-V Hybrid tow ratings are considerably lower than the gas car’s, in some model years not rated for towing at all, because of the hybrid transaxle and cooling. Check your owner’s manual and believe that number, not the one on the hitch.
Phase 1 — Power, ground and module prep
- Disconnect the battery. 10 mm wrench, remove the black negative ground cable from the post. Keep the system dead while you work.
- Place the module. Mount the powered converter module flat inside the driver’s-side trunk storage tub.
Grounding is the single most important connection in the job. Nearly every weird trailer-light symptom traces back to it — brake lights making the turn signal flash, lights dimming when you signal, tail lights glowing dimly for no reason.

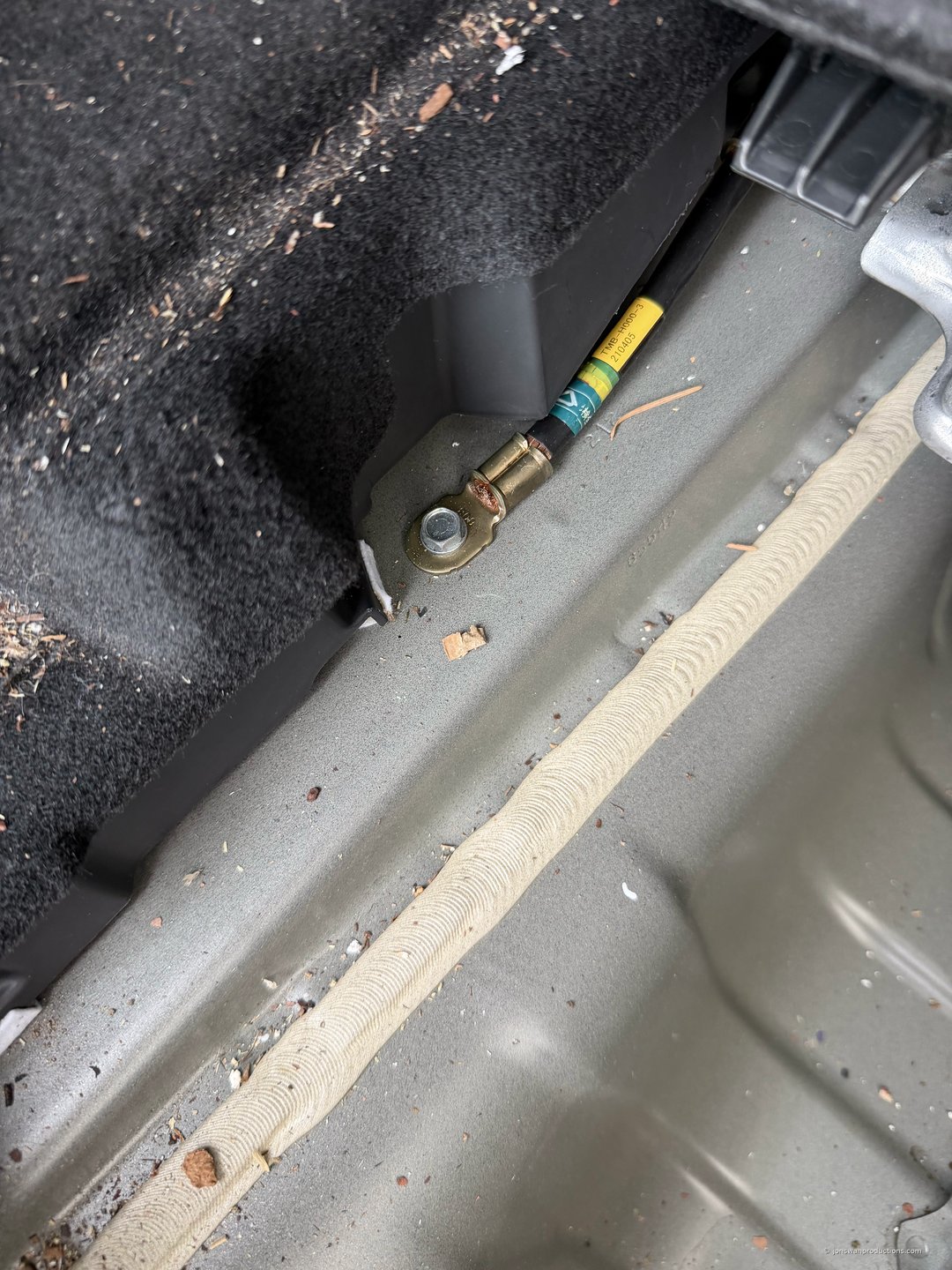

Don’t drill a new hole; you break the paint and start rust. Find an existing factory ground bolt in the trunk pan, back it out, add your ring terminal underneath, and torque it back down. Metal to metal, no paint, no undercoating in between.
- Pull the inline fuse and leave it out until all wiring is finished.
🔥 CRITICAL — where the fuse goes. Read this before running the power wire.
The constant 12V feed runs 12–15 feet from the battery to the trunk. The inline fuse must sit within 6–18 inches of the battery’s positive terminal — not at the module end.
A fuse protects the wire, not the device. If the fuse is back at the module, the entire run from the battery is unprotected: chafe anywhere along it — through a grommet, over a frame edge, under a seat rail — and the full battery dumps into the chassis with nothing to interrupt it. That is how a car catches fire.
Fuse at the battery end. Always. No exceptions.
- Run the constant 12V feed. Route 12 AWG from the battery positive, through the inline fuse holder mounted right at the battery, back to the module’s red wire. Use a rubber grommet at every panel pass-through and secure the run every 12–18 inches so it can’t move and chafe.
Phase 2 — Getting at the taillight wires

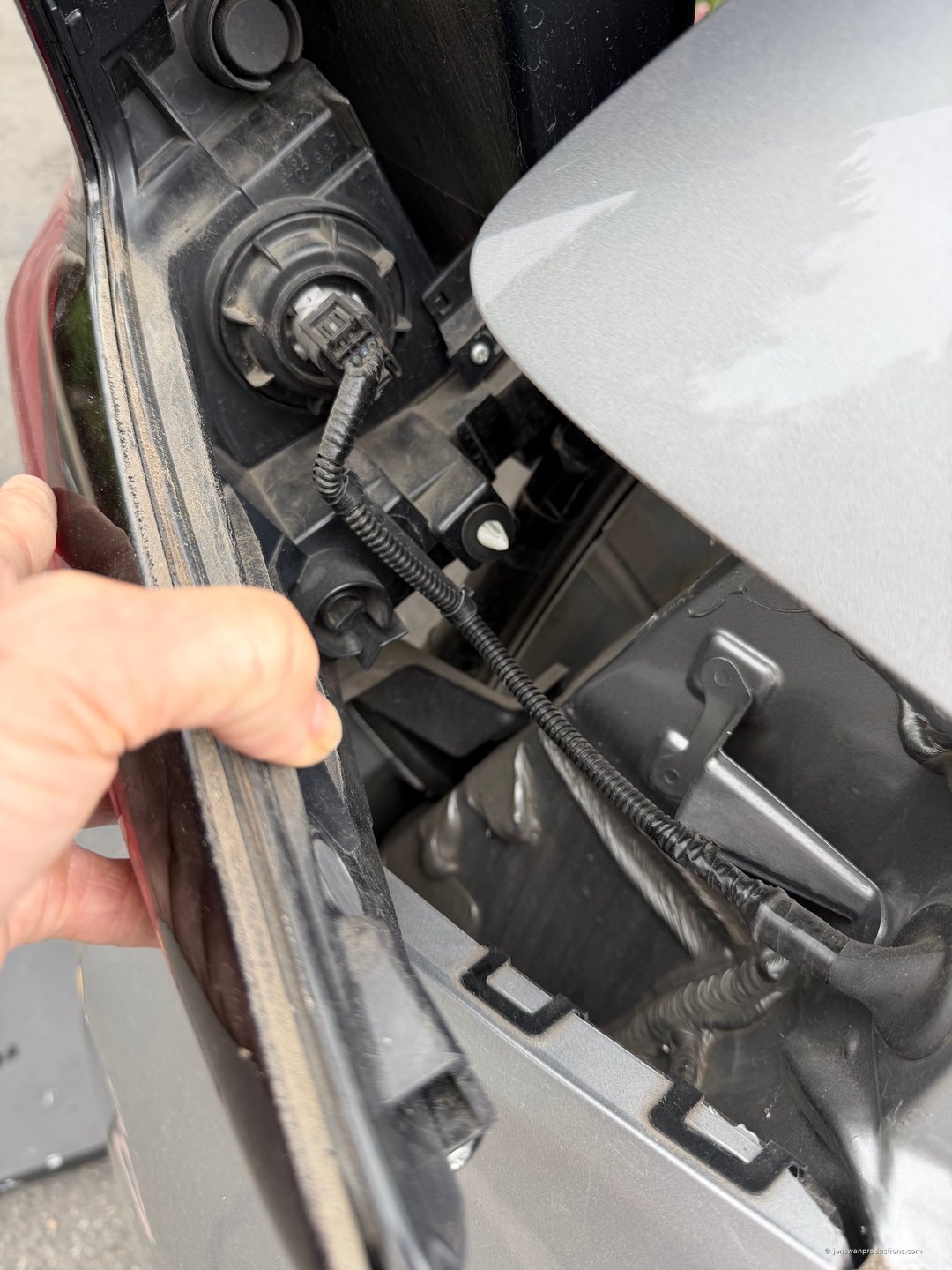

You do not need to take the bumper off for this part. Two screws and the light comes out.
- Pop off the plastic trim panel beside the tailgate strut.
- Remove the two 10 mm screws holding the light assembly.
- Slide the assembly straight back out of the body. The connector is right there.

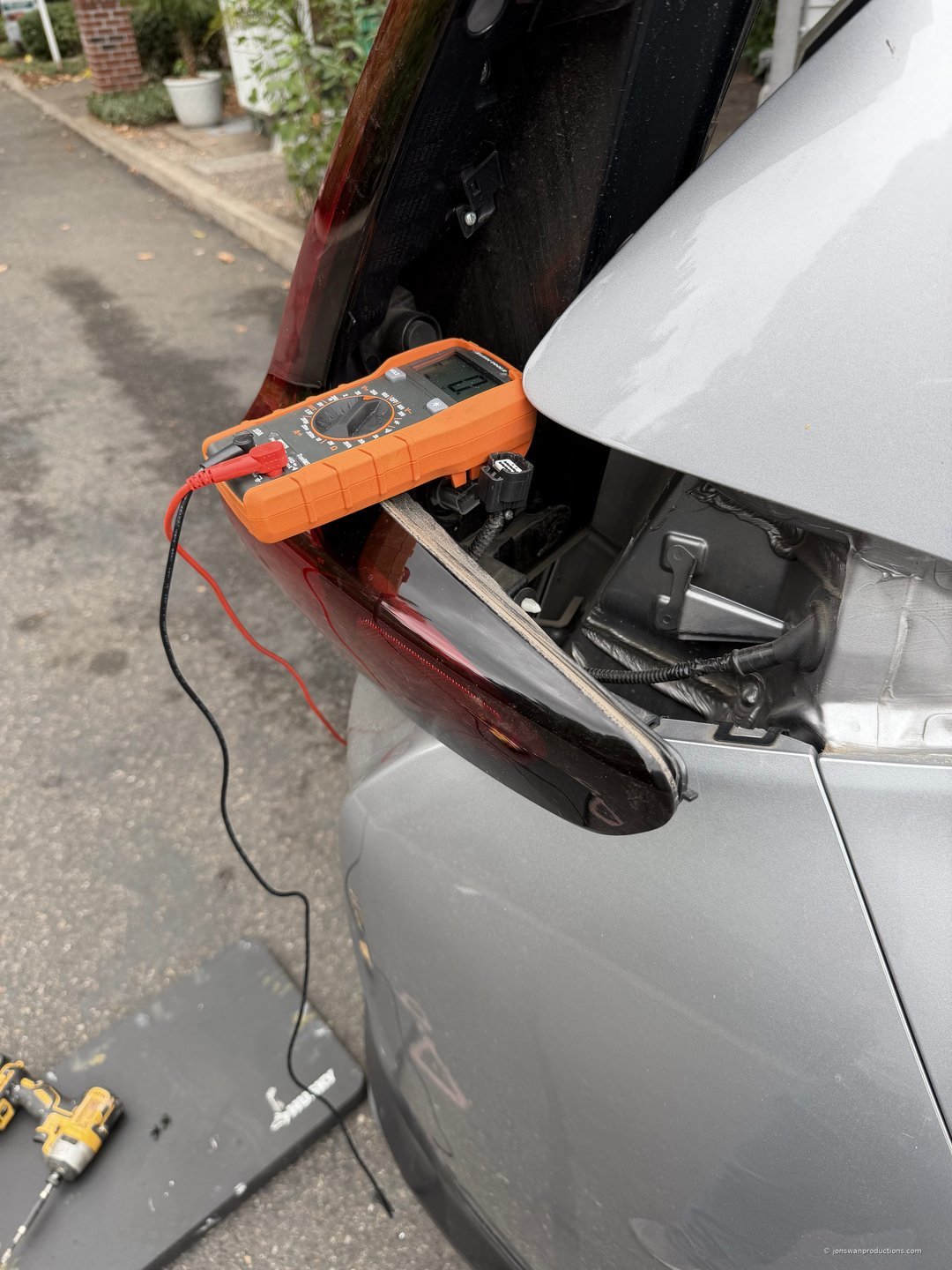

Finding the right pin — use a meter, not the color chart
⚠️ The method: one probe on ground, the other on the pin, look for 12V.
- Set the meter to DC volts.
- Put the black probe on a known good ground — bare metal on the body, or the ground bolt you just used. This matters; a floating reference gives you nonsense readings.
- Touch the red probe to each pin in turn while a helper works the lights — running lights on, left signal, right signal, brake.
- The pin that reads about 12V when its function is active is your wire.
Wire colors vary by model year, trim and market. The table below is what I found on my car. Treat it as a starting point and confirm every wire with the meter before you cut anything — then disconnect the battery again before you splice.
Phase 3 — The driver’s-side trap 🛑
This is the part nobody writes down, and it’s the reason this article exists.
Do not tap into the small 4-wire bundle on the driver’s-side interior floor. The green wire in that cabin bundle is not a lighting wire. It carries a sensitive 5V data signal tied into the tailgate actuator circuit. Tap it and you get dashboard faults, blocked signals, a power tailgate that stops responding, and an anti-theft lockout loop that is genuinely alarming the first time it happens.
It looks like the convenient place to work. It is the wrong place to work.
Instead, go outside to the driver’s-side taillight — same two screws as the passenger side. Everything you need is there, on clean 12V lighting circuits with no data on them.
Phase 4 — Left side master controls
Pass the module’s yellow, brown and red wires out from the trunk pan through the rubber body grommet into the left taillight cavity.
| Pin | Car wire color | Module wire | Circuit |
|---|---|---|---|
| Pin 1 | Black | — skip — | Main ground |
| Pin 2 | White | Yellow | 12V left turn |
| Pin 3 | Purple | Brown | 12V tail / running |
| Pin 4 | Light green / blue | Red | 12V brake |
On the passenger side, the right turn/brake wire was pin 2, green. Strip a window of insulation, wrap your extension tightly, solder, and seal with adhesive-lined heat shrink — not electrical tape. Tape unwraps in a taillight cavity once heat and moisture get at it.

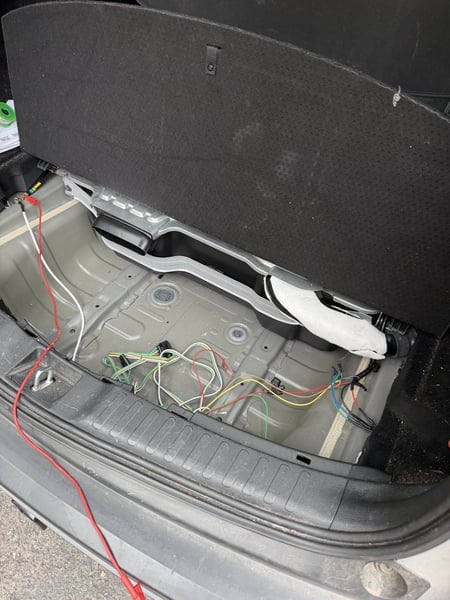

Routing: hide the wires under the trunk tray
Take the plastic cargo tray out before you route anything. It lifts straight out, and underneath is a flat pan with channels and existing clip points — run everything there, keep it flat, and put the tray back. The finished job looks factory because nothing is showing.
Phase 5 — Fuse in, and test before you tow
This step is not optional. A wiring job you haven’t verified is a wiring job you haven’t finished.
- Insert the inline fuse at the battery.
- Reconnect the battery negative terminal.
- Plug a trailer or a 4-way tester into the connector and check each function in turn:
- Running / tail lights
- Left turn
- Right turn
- Brake
- Brake and turn signal together — this combination is what exposes a bad ground
- Check the car’s own lights still work correctly, including the hazards.
- Test the power tailgate and the hands-free kick sensor. CURT’s own listing warns the 13397 “may affect hands-free liftgate,” so confirm it still operates before you call the job done.
- Watch the dashboard for a few drives. Anti-theft or communication faults from a bad tap may not appear immediately.
If something’s wrong
- Brake lights make the turn signal flash, or lights dim when signaling — bad ground. Go back to that ground bolt and get the terminal onto bare, shiny metal.
- Dashboard faults, anti-theft light, tailgate stops responding — you’ve tapped the 5V data line. Undo that splice and move to the exterior taillight.
- Nothing works at all — check the fuse at the battery first.
And the hitch itself

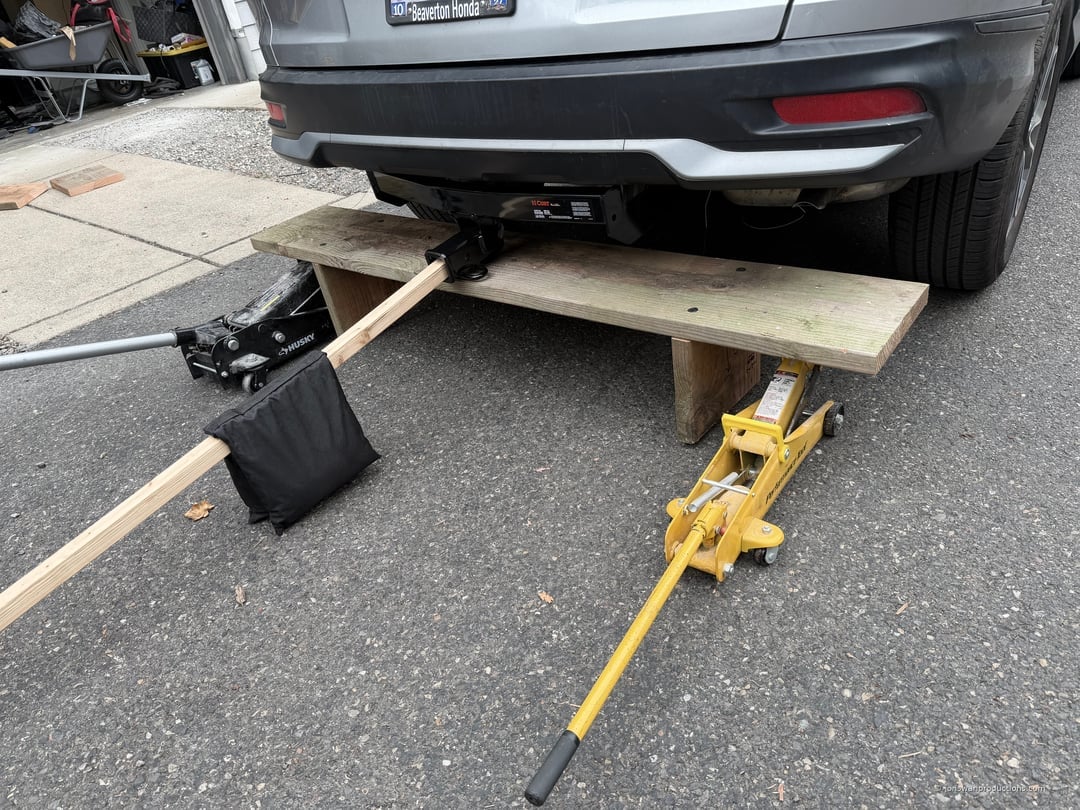

The CURT 13397 went on the same weekend. If you’re doing both, the useful trick is above: a car on jack stands sits nose-down, so a level platform fights you. Two jacks under a shared plank let you match the chassis angle exactly, and the mounting slots drop straight over the bolts instead of cross-jamming.
A note on doing this at all
If your CR-V has the factory tow package, buy the plug-and-play harness and skip every word of this. It plugs into existing connectors in minutes with no cutting. This guide is for the case where you’ve discovered those connectors don’t exist on your car and you’re standing in the driveway with a harness that won’t connect to anything.
Work with the battery disconnected, fuse at the battery end, verify every wire with a meter, ground to bare metal — and don’t touch that driver’s-side floor bundle.
